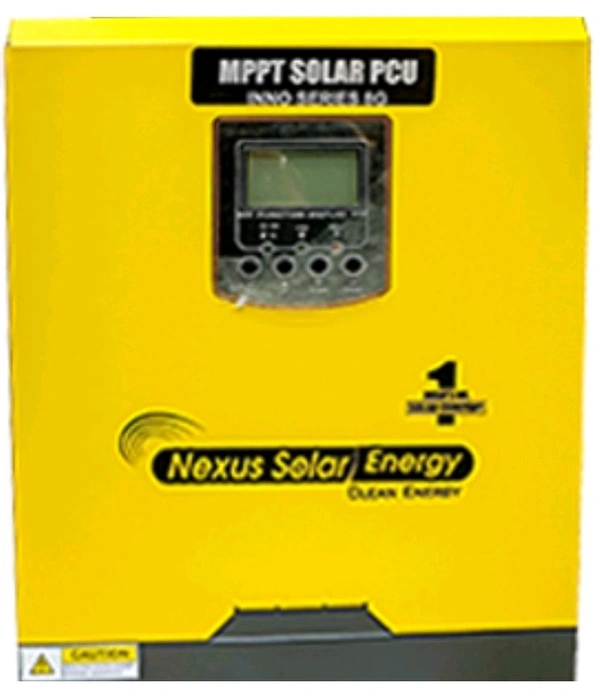

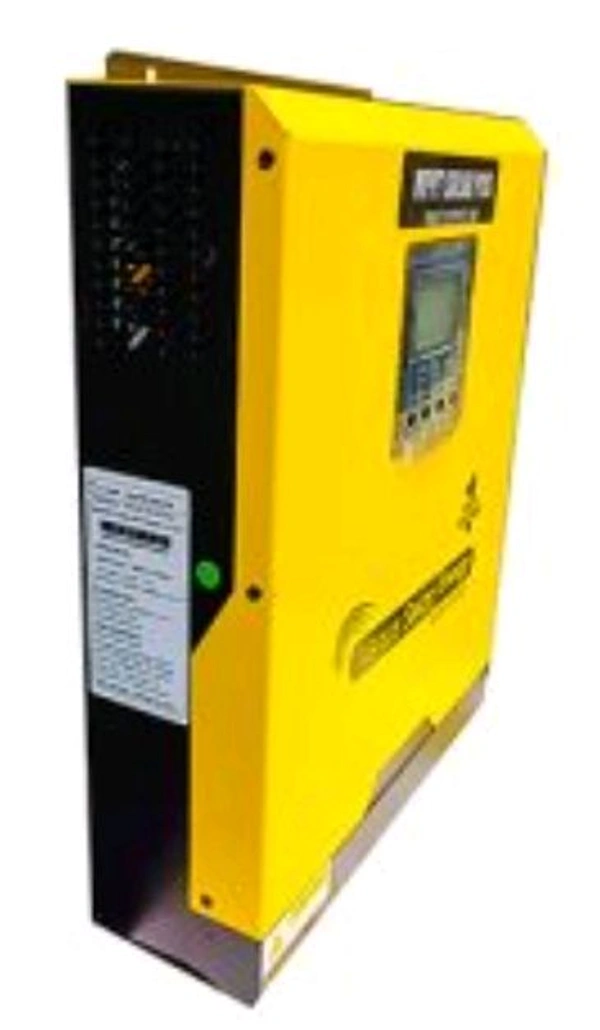

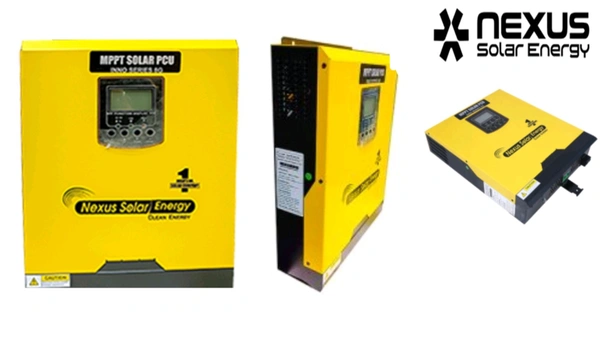

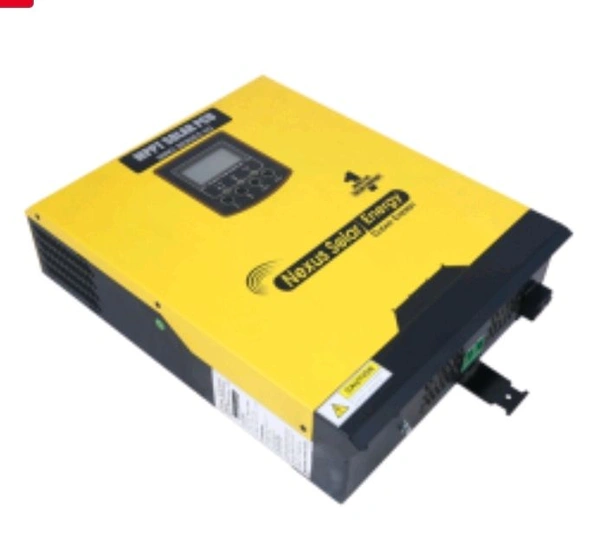

Inno8G 5kW-48V OFG Solar Inverter
4.0
Ratings
₹ 71,980 / Piece
₹ 101,348
29%
Highlights
Product Overview
RGB LED ring (refer to LCD Setting section for the details)
LCD display
Touchable Function keys
PV connectors
AC input connectors
AC output connectors (Load connection)
Battery connectors
Current sharing port
Parallel communication port
Circuit breaker
Power switch
Dry contact
USB port as USB communication port and USB function port
RS-232 communication port
BMS communication port: CAN, RS-485 or RS-232
Basic System Architecture The following illustration shows basic application for this unit. It also required the following devices to have a complete running system:
Generator or Utility mains.
PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power various appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioners.
Nexus Inno8G 5kW-48V OFG Solar Inverter
Rated Power 5000 VA / 5000 W
Parallel Capability No
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For UPS Mode) at 100% Load; 90-280 VAC (For Appliance Mode)
Frequency Range 50 Hz/60 Hz (Auto sensing)
AC Voltage Regulation (Batt. Mode) 230 VAC ± 5%
Surge Capacity 10000 VA for 5 secs
Efficiency (Peak) 0.93%
Transfer Time 10 ms (For Personal Computers); 20 ms (For Appliances)
Waveform Pure Sine Wave
No Load Power Consumption < 50 W
Battery Voltage 48 VDC
Floating Charge Voltage 54 VDC
Overcharge Protection 63VDC
Maximum Solar Charging Current 120A
Maximum PV Array Power 5000W
Solar Charger Type MPPT
MPPT Range 120 ~ 450VDC
Maximum PV Array Open Circuit Voltage 500VDC
Maximum PV Input Current 27 A
Dimension, D x W x H (mm) 100x300x400
Net Weight (kgs) 10
Communication Interface RS232/Dry-Contact/WiFi
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -10°C – 50°C
Storage Temperature -15°C – 60°
Out of Stock
Description
This is a multi-function inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in a single package. The comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC or solar charging priority, and acceptable input voltage based on different applications.
Features
- Pure sine wave inverter
- Customizable status LED ring with RGB lights
- Touchable button with 4.3″ colored LCD
- Supports USB On-the-Go function
- Data log events stored in the inverter
- Built-in anti-dusk kit
- Reserved communication port for BMS
- Battery independent function
- Parallel operation up to 9 units
